3.8 Inch PLC HMI All in One Integrated Programmable Logic Controller, 10 Input 7 Relay Output, Built-in Analog 2AD & 2DA, 2NTC10K, 2 High-Speed Pulse 100KHz for Sevor or Stepper (17MR-FE380-FX-B)

YKHMI PLC HMI Integrated Programmable Logic Controller MM-17MR-4MTS-FE380-FX-B Description: Please download the User manual / HMI Software / USB Driver / Tutorial / Diagram : https:// drive.google.com/drive/folders/1N4nXlDS_wumzx0K0zZJURaIR--garByl?usp=sharing MM-17MR-4MTS-FE380-FX-B With built-in analog input 0-10V and 2 analog output 0-10V single, also have 2 Temperature which range from -50 to 150°, the temparature probe use NTC10K, B3435 (B value is 3435) Attention: 1. pls disconnect the download USB cable when read the value of AD, DA and temparature NTC10K probe value 2. temparature NTC10K probe range is -50 -150 °， B3435 model. 3. HMI Choose FE serials, 380, choose FXCUP in PlC type Product Description: 1. PLC Type: Fully compatible with FX1S, 10 Input 7 Relay Output. Have additional 4 Transistor Output: 2 for high speed pulse 100KHz (5V pulse single) & 2 for direction, can drive 2 servos or 2 steppers with pulse, have 2 high speed input 100KHz X0 X1 to control encoder also 2. PLC software: Use GX Workers 2 or Developer (pls download from GX Workers 2 website, we only have Chinese version), support Command + T Ladder Diagram + SFC for programming 3. HMI Software: YKBuilder V5.3/7.0 (Pls contact us, we will share it and the video instruction and guidelines), HMI Choose FE serials, 380 4. Cable for download program from PC to PLC/HMI: Use the: mini port – USB cable, pls install HMI & PLC’s USB driver first, which we will share. 5. High Speed: 2 high speed counting, 2 high speed output pulse (100KHz) with 5v signal 6. MM-17MR-4MTS-F350-FX-B With 2AD and DA 0-10V single, 2 Temperature NTC10K -50-150, B3435 -- Remark: Pls disconnect the download cable when read the AD DA value Packing List: 1 X HMI PLC All In One 1 X Cable for PLC and HMI program download 2 X Pulse cable to connect for PLC and Servo or Stepper 4 X Buckles Pls contact us for HMI sofeware, USB driver, User mannual and instructions, we have whole vidie guidance, thank you!

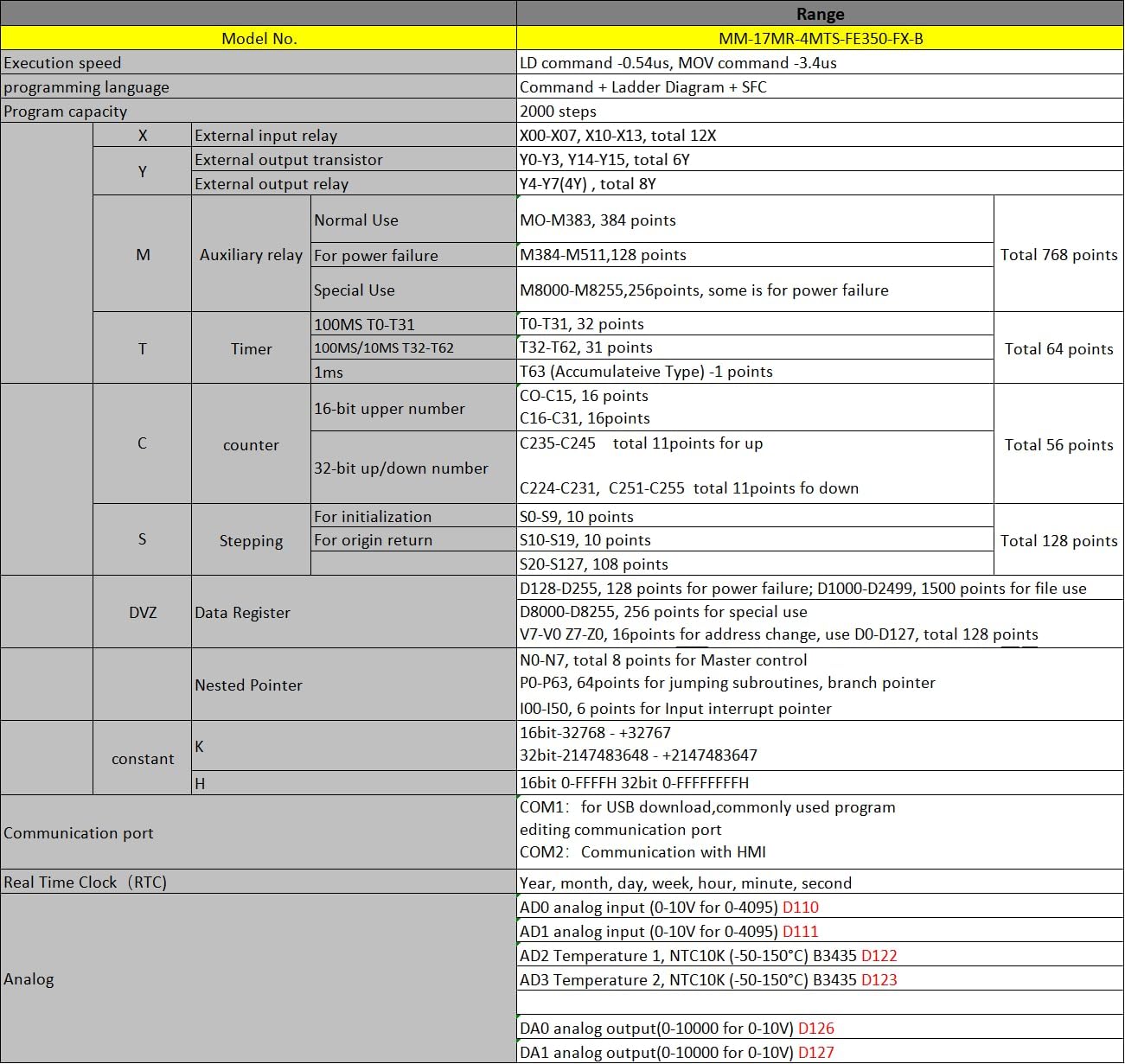

• -- PLC Type: Fully compatible with FX1S, 10 Transistor Input (NPN Type), 7 Relay Output. Have additional 4 Transistor Output: 2 for high speed pulse 100KHz & 2 for direction, can drive 2 servos or 2 steppers with pulse, built-in 2AD（0-10V) and 2DA(0-10V), also 2 NTC10K B3435 probe. Just read the address of AD DA NTC's will ok, 2 high speed input 100KHz X0 X1 to control encoder
• -- PLC software: Use GX Workers 2 or Developer (pls download from GX Workers 2 website, we only have Chinese version), support Command + T Ladder Diagram + SFC for programming
• -- HMI Software: YKBuilder V5.3 and Choose FE serial 380 model in HMI software. (Pls contact us, we will share it and the video instruction and guidelines), very easy to use, just create the buttun and set the address
• -- Use the same Cable for download program from PC to PLC/HMI: Use the: mini port – USB cable, pls install HMI & PLC’s USB driver first, which we will share.
