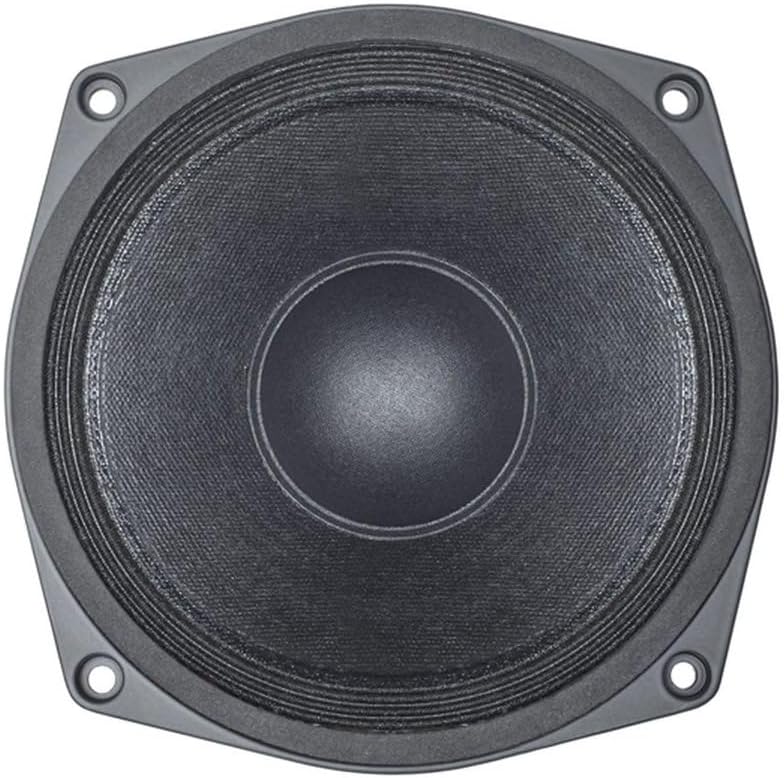

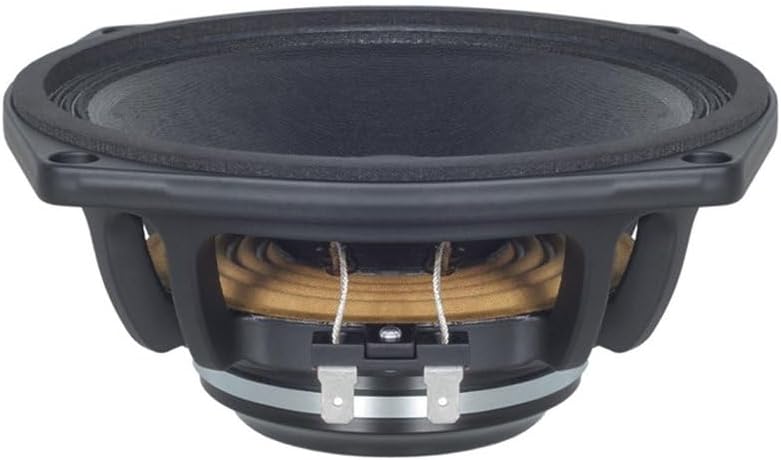

B&C Speakers 6MDN44-8 6.5-in Woofer with 8 Ohms Impedance & 400 Watts Continuous Power Handling Capacity & Neodymium Ring Magnet

The B&C Speakers 6MDN44-8 is a high-efficiency 6.5-inch midrange woofer, crafted for precision sound reinforcement in both compact and high-output speaker designs. With a finely tuned balance of power, clarity, and durability, this driver is engineered to deliver articulate mids with impressive punch—especially useful in multi-way professional audio systems. || KEY FEATURES || Power Handling : 200W nominal | 400W continuous program power || Frequency Response : 150 Hz – 6000 Hz || Sensitivity : 96.5 dB (1W/1m) for excellent efficiency || Impedance : 8 Ohms nominal, 6.5 Ohms minimum || Voice Coil : 44 mm (1.7 in) aluminum || Winding depth : 10 mm || Former : Glass fibre || Magnet : Neodymium ring with 1.45 T flux density || Cone & Suspension : Exponential cone shape | Triple roll surround | Single spider || PHYSICAL SPECIFICATIONS || Overall Diameter : 187 mm (7.4 inch) || Cutout Diameter : 145 mm (5.7 inch) || Depth : 73 mm (2.9 inch) || Net Weight : 1 kg (2.2 lbs) || Shipping Weight : 1.2 kg (2.65 lbs) || Shipping Box : 210 × 210 × 125 mm (8.27 × 8.27 × 4.92 inch) || ENGINEERING EXCELLENCE || Power on Tap : Capable of handling 200 watts nominal and 400 watts continuous program power, this compact unit is more than ready to push air with authority. || Wide Frequency Reach : With a range of 150 Hz to 6000 Hz, the 6MDN44-8 provides detailed vocal reproduction and instrumental articulation, making it ideal for both midbass and low-mid crossover applications. || Efficiency that Impresses : A 97 dB sensitivity (1W/1m) ensures high output even with modest amplification—perfect for energy-conscious systems. || BUILT FOR ENDURANCE AND PERFORMANCE || Voice Coil & Magnet : Features a 44 mm aluminum voice coil wrapped over a glass fiber former, supported by a neodymium ring magnet and 1.45 Tesla flux density—an efficient and lightweight design that ensures fast transient response and heat management. || Precision Motion Control : A triple roll surround and exponential cone shape contribute to smooth excursion and distortion-free operation, even under pressure. || Structural Details : Winding depth: 10.0 mm | Magnetic gap depth: 6.0 mm | Pole design: T-Pole for reduced flux modulation | Spider type: Single-layer, ensuring tight mechanical alignment || BEST FIT FOR || Compact Line Arrays & Stage Monitors – where tight mids and high SPLs are required. || Two- or Three-Way Enclosures – an excellent mid-bass or low-midrange driver. || Portable PA & Installed Sound Systems – when you need lightweight drivers with high power density.

• The B&C Speakers 6MDN44-8 is a 6.5-inch neodymium midrange driver engineered for high-output, low-distortion performance in professional audio systems. Compact yet powerful, it’s ideal for multi-way loudspeaker designs, especially where clarity and efficiency are critical. ||
• KEY FEATURES || Power Handling : 200W nominal | 400W continuous program power || Frequency Response : 150 Hz – 6000 Hz || Sensitivity : 96.5 dB (1W/1m) for excellent efficiency || Impedance : 8 Ohms nominal, 6.5 Ohms minimum || Voice Coil : 44 mm (1.7 in) aluminum || Winding depth : 10 mm || Former : Glass fibre || Magnet : Neodymium ring with 1.45 T flux density || Cone & Suspension : Exponential cone shape | Triple roll surround | Single spider ||
• PHYSICAL SPECIFICATIONS || Overall Diameter : 187 mm (7.4 inch) || Cutout Diameter : 145 mm (5.7 inch) || Depth : 73 mm (2.9 inch) || Net Weight : 1 kg (2.2 lbs) || Shipping Weight : 1.2 kg (2.65 lbs) || Shipping Box : 210 × 210 × 125 mm (8.27 × 8.27 × 4.92 inch) ||
• BEST FIT FOR || Compact Line Arrays & Stage Monitors – where tight mids and high SPLs are required. || Two- or Three-Way Enclosures – an excellent mid-bass or low-midrange driver. || Portable PA & Installed Sound Systems – when you need lightweight drivers with high power density. ||
• This driver is also waterproof on the front side, making it suitable for rugged environments. It’s a great match for compact line arrays, stage monitors, and portable PA systems where tight midrange and high SPL are essential. ||
