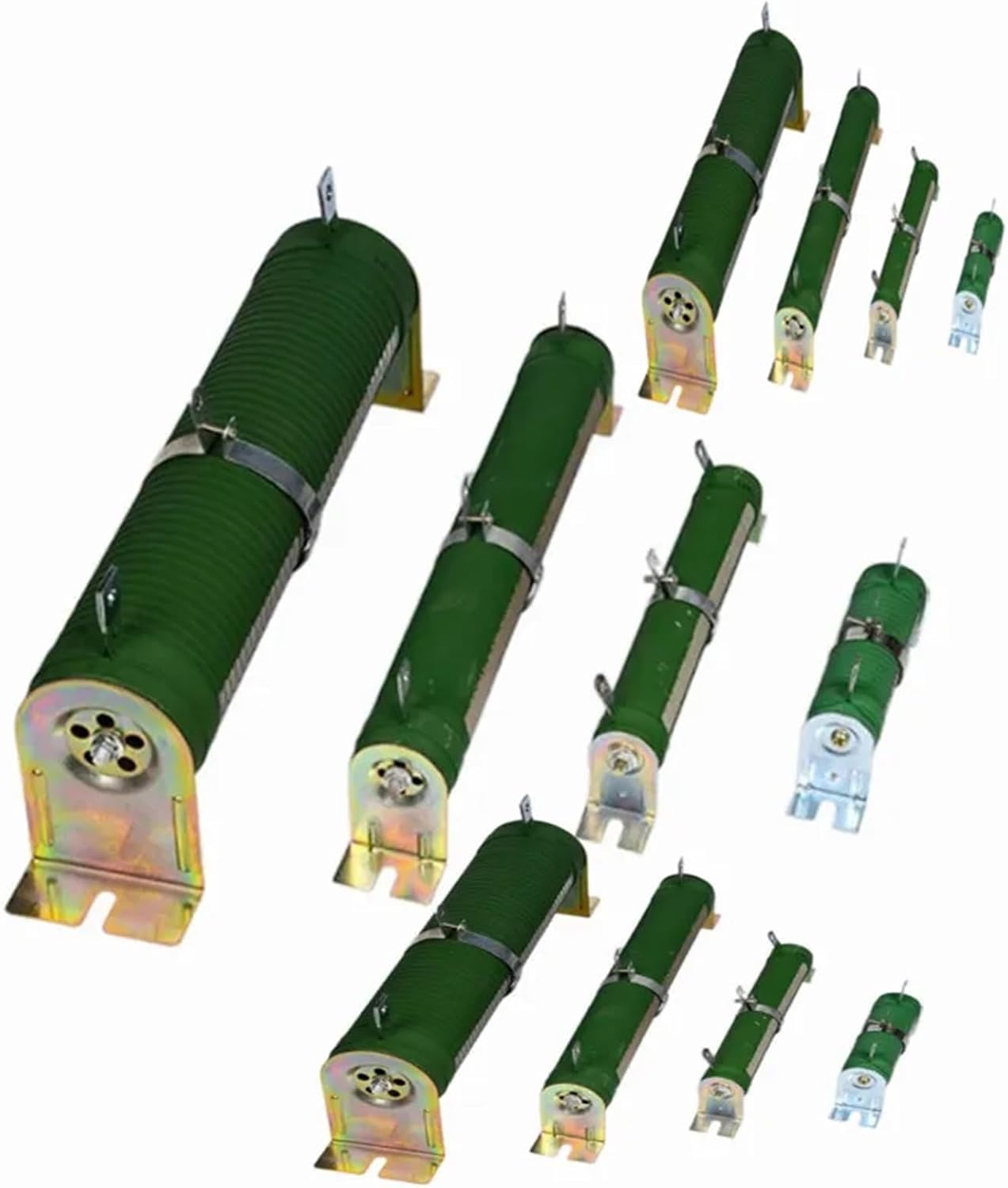

Ceramic Tubular Adjustable Resistor Rheostat 50W 100W 200W 300W 500W 1000W 2000W 3000W 5/10/20/30/40/50/100/150/200/500/1k Ohm(1000W 200 Ohm)

Resistor UnitsCeramic Tubular Adjustable Resistor Rheostat 50W 100W 200W 300W 500W 1000W 2000W 3000W 5/10/20/30/40/50/100/150/200/500/1k OhmThe allowable deviation of standard resistance value of power-type adjustable wire wound resistor is ±5% (J level) ±10% (K level);The power resistance of this product needs to be selected appropriately, (resistance adjustment, such as 1000W 0-100R adjustable resistance)Long-term continuous load work needs to magnify 2-3 times the power to ensure heat dissipation (resistance and power need to match)Can realize voltage regulation, current regulation, suitable for aging load, product load test, etc.According to customer needs, higher precision products can be provided, such as: ±1% (F level) ±2% (G level)Temperature coefficient: ±350ppm/Ambient temperature -55-+155Surface temperature resistance 300Using vertical corrugated winding can reduce parasitic inductance, enhance heat dissipation, reduce volume, and extend service life.The resistance is adjustable. Two or more terminals with good conductivity can be set==========Accuracy : 5%Color : greenRated Power : 50W 100W 200W 300W 500W 1000W 2000W 3000WResistance Tolerance : 5% 10%Technology : WirewoundType : Variable ResistorModel number : 150R 200R 500R 1000R

• Resistor Units
• Ceramic Tubular Adjustable Resistor Rheostat 50W 100W 200W 300W 500W 1000W 2000W 3000W 5/10/20/30/40/50/100/150/200/500/1k Ohm
• The allowable deviation of standard resistance value of power-type adjustable wire wound resistor is ±5% (J level) ±10% (K level);
• The power resistance of this product needs to be selected appropriately, (resistance adjustment, such as 1000W 0-100R adjustable resistance)
• Long-term continuous load work needs to magnify 2-3 times the power to ensure heat dissipation (resistance and power need to match)
• Can realize voltage regulation, current regulation, suitable for aging load, product load test, etc.
